The user interface is designed to make imaging quick and convenient, even for new users. All options are pre-configured and calibrated across the different plate formats available and with options to cover different imaging applications.
To get started, simply select the plate type you wish to image:

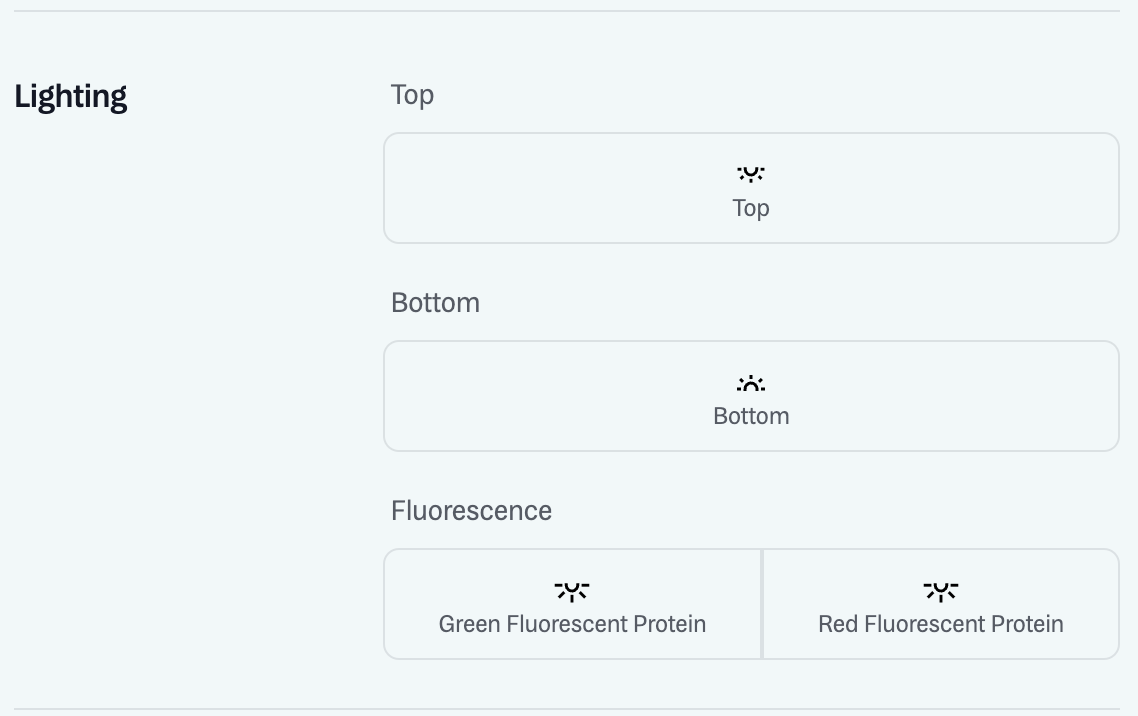

There are three main types of lighting:
- Bottom Light: This emits diffuse light from below through the sample and into the camera. It is ideal for high-contrast imaging of plates, especially for applications like CFU counting. This only works with translucent samples.
- Top Light: This uses a ring-shaped lighting device in the camera head to illuminate the sample from above. The result is more realistic morphologies and color representations. The top light mode works with any object, including non-translucent samples and substrates such as soil, yogurt, and many others.
- Fluorescence Imaging: This imaging mode combines top light at high exposure times with a built-in filter device in the camera head to selectively block certain wavelengths. This enables the imaging system to capture complete fluorescent time-lapse recordings along with bright-field images.
Up to 4 lighting modes can be selected at the same time
Two different plates showcasing bacterial colonies with bottom light and top light:
Example of a Petri tray timelapse imaged with bottom light preset:
The capture interval can be anywhere from every 10 minutes to every 12 hours

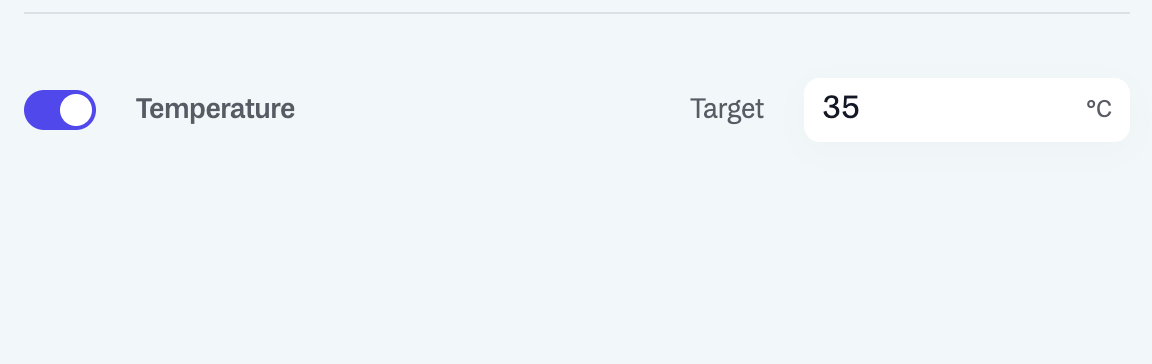

The desired Target temperature can be selected before you start a job. In order to guarantee optimal results the Target temperature should be +5º above room temperature otherwise the job might fail.
Note : Target temperature max 40º.
Images can be downloaded from the "data export" panel in bulk if required.
